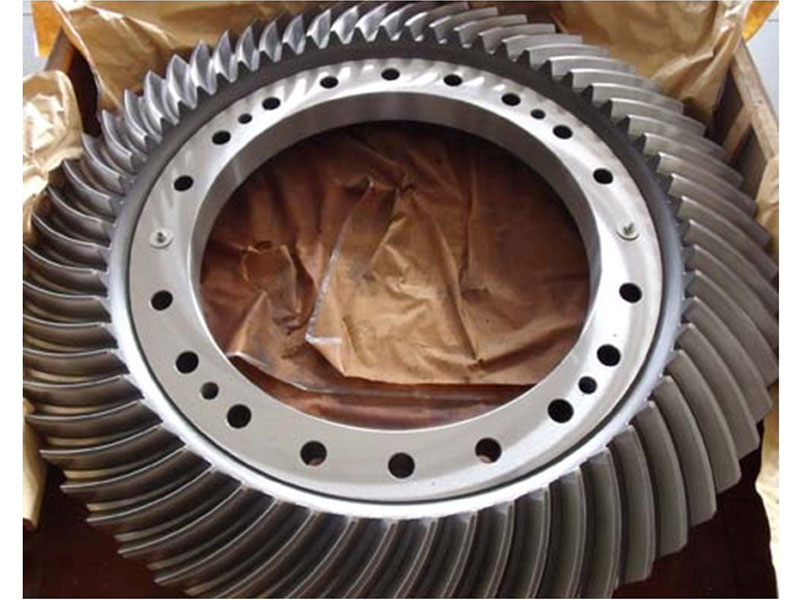

Cement Mill Spiral Bevel Gear
Request a Quote
Print
Email
Main Data
Description: Cement mill spiral bevel gear
GEARX No.: SB27-61RG
Module: 27 mm
No. of teeth: 61
Pressure angle: 20°
Helical angle: 35°
Helical hand: Right
Gear tooth system: Gleason
Material: 17CrNiMo6
Heat treatment: Through quenching and tempering, then carburizing hardened
Case hardening depth(CHD): 3.50 mm
Tooth hardness: HRC59~63
Tip Diameter: 1630 mm
Face width: 210 mm
Tooth surface finish: Ground
Accuracy grade: DIN 6
Weight: 378.9 kg
Application
Cement mill
The Main Fabrication Procedure
Forging the gear blank.
Normalizing
Rough machining
Ultrasonic inspection, analyzing the chemical composition and testing the mechanical property of sample
Quenching and tempering
Grinding datum plane
Milling
Carburizing and tempering
Turning the the carbon layer
Hardening and tempering( 2 times)
Shot peening
Finish turning
Finish grinding
Gear grinding
Inspection magnetic inspection the tooth flank, and then magnet demagnetization
Mating
Technical Documents
Inspection certificate of material
Heat treatment certificate
Certificate of ultrasonic inspection
Magnetoscopic test certificate(on tooth flank)
Size tolerance and geometric tolerance report
Inspection report of tooth quality
Tooth contact pattern report
Relative Standards
DIN 3965 Pt 1 08.86 - Tolerancing of bevel gears - Basic concepts
DIN 3965 Pt 2 08.86 - Tolerancing of bevel gears - Tolerances for individual parameters
DIN 3965 Pt 3 08.86 - Tolerancing of bevel gears - Tolerances for tangential composite errors
DIN 3965 Pt 4 08.86 - Tolerancing of bevel gears - Tolerances for shaft angle errors and axes intersection
DIN 3971 07.80 - Definitions and parameters for bevel gears and bevel gear pairs
