The Main Data

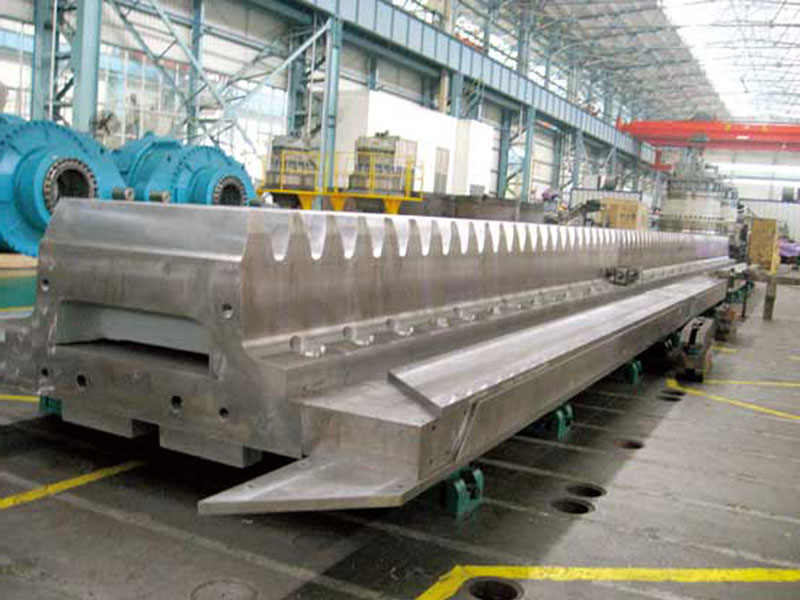

Description: Ship lift gear rack
GEARX No.: CR62-470H
Module: 62 mm
No. of teeth: 24
Pressure angle: 20°
Material: G35CrNiMo6-6+QTI DIN EN 10293
Heat treatment: Through quenching and tempering, tooth surface induction hardened
Hardness of rack body: HB260-300,
hardness of tooth surface: HRC≥50
Case hardening depth(CHD): 6~9 mm
Length: 4,705 mm
Height: 492 mm
Face width: 810 mm mm 810
Rack width: 1,160 mm
Tooth surface finish:

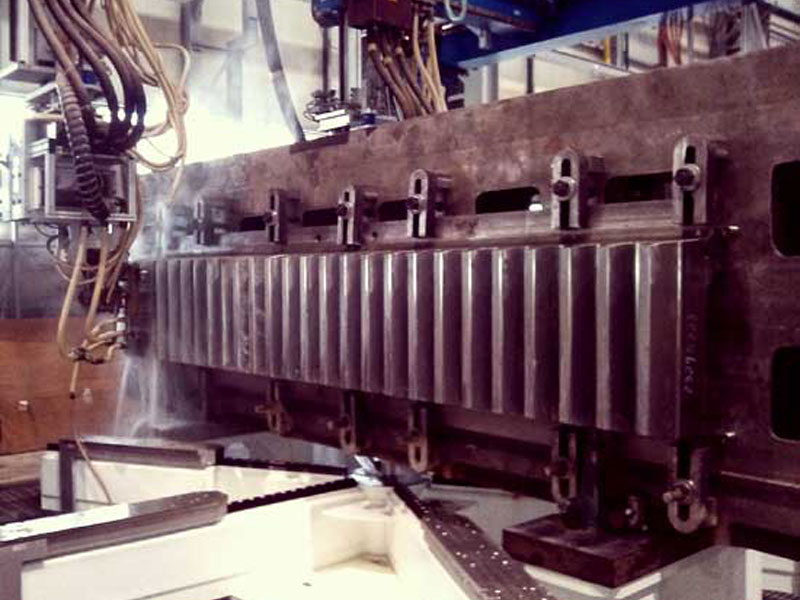

Gear milling by special milling cutter
Dedendum milling by special milling cutter
Accuracy grade: DIN10a27
Weight of gear blank: 24,500 kg
Weight of rack: 11,300 kg
Applications
Vertical ship lift system
The Main Fabrication Procedure
Upon request
Technical Documents
Inspection certificate of material
Heat treatment certificate
Certificate of ultrasonic inspection with grade II
Magnetic particle detection certificate(on tooth flank)

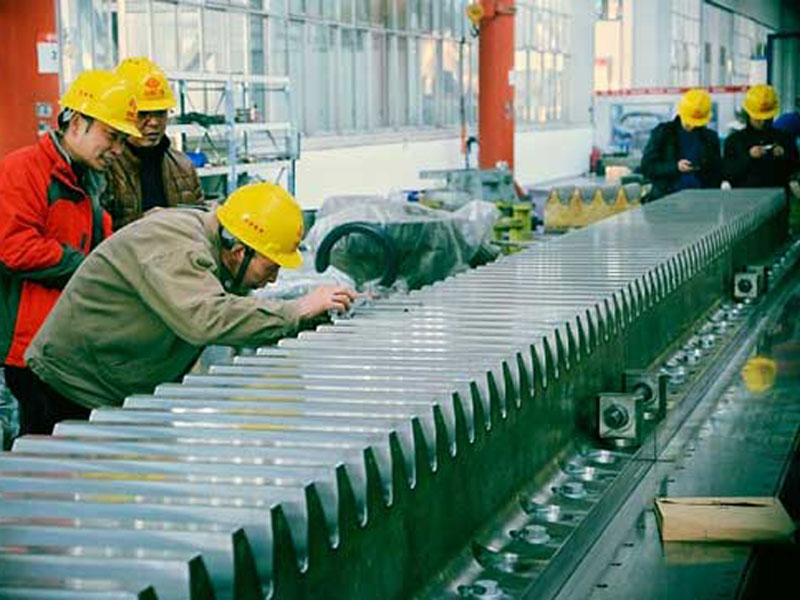

Size tolerance and geometric tolerance report
Inspection report of tooth quality
Relative Standard
DIN 3961 Tolerance for cylindrical gear teeth; bases
DIN 3962 Tolerance for cylindrical gear teeth;
Part 1 Tolerance for diviations of individual parameter
Part 2 Tolerance for tooth trace deviations
Part 3 Tolerance for pitch-span deviations
DIN 3967 Tooth thickness allowances
Tooth thickness tolerances
