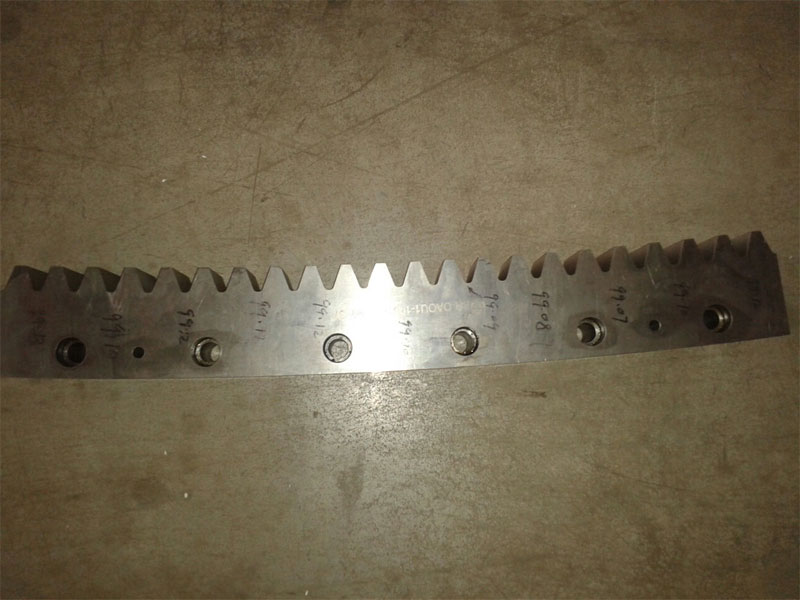

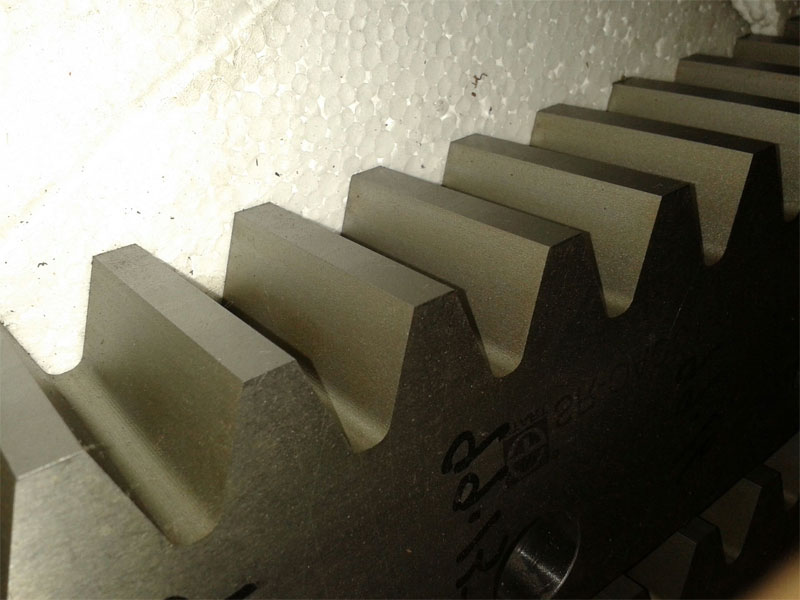

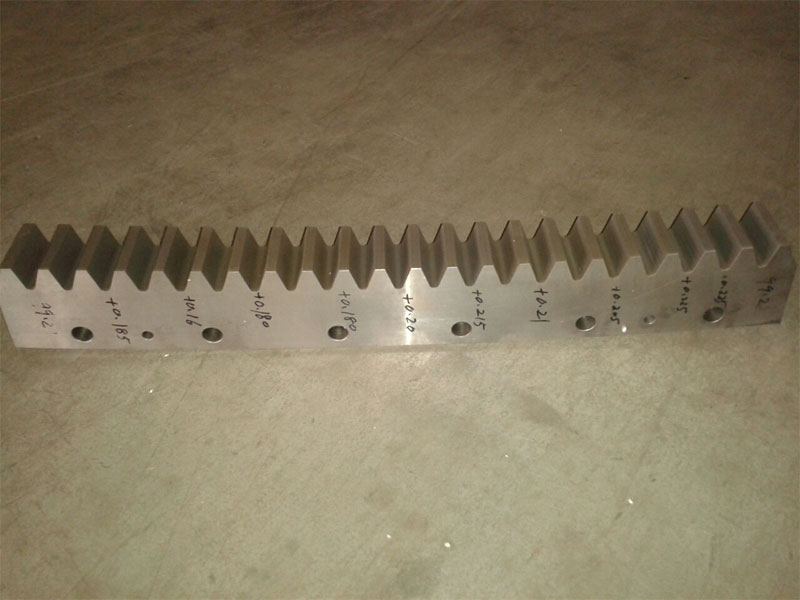

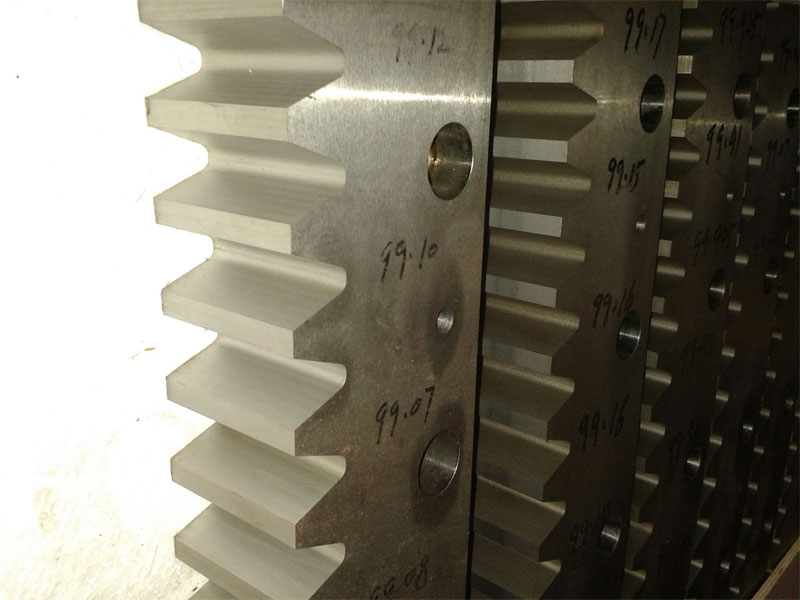

Alloy Steel Internal Gear Segment
Request a Quote
Print
Email
Main Data
Description: Alloy steel Internal gear segment
GEARX No.: SGS10-7.1GB
Module: 10 mm
No. of teeth: 17
Degrees covered: 7.1°
Pressure angle: 20°
Material: 42CrMo
Heat treatment: Through quenching and tempering
Tooth hardness: HB260-280
Tip Diameter: 4317.02 mm
Reference diameter: 4307.02 mm
Root diameter: 4294.52 mm
Face width: 65 mm
Tooth surface finish: Grinding
Accuracy grade: DIN 7
Weight of gear blank: 28 kg
Weight: 20.5 kg
Application
Aircraft manufacturing
The Main Fabrication Procedure
Single 7.1° sector rough machining, 1 mm allowance
Stress relieving
WEDM
Technical Documents
Inspection certificate of material
Heat treatment certificate
Size tolerance and geometric tolerance report
Inspection report of tooth
Ralative Standards
DIN 3961 Tolerance for cylindrical gear teeth; bases
DIN 3962 Tolerance for cylindrical gear teeth
Part 1 Tolerance for diviations of individual parameter
Part 2 Tolerance for tooth trace deviations
Part 3 Tolerance for pitch-span deviations
DIN 3967 Tooth thickness allowances
Tooth thickness tolerances
